This spare receiver is a replacement for our wireless bird box camera kit. Use it to receiver signals from your camera to watch on your TV.

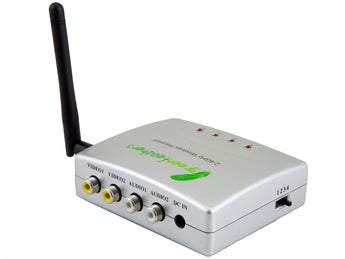

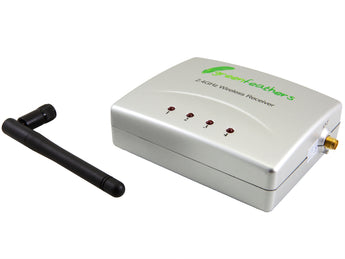

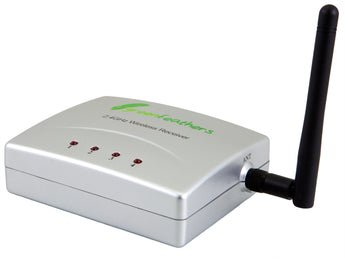

Replacement Wireless Receiver
Works with our wireless bird box cameras.
Plugs straight into the back of a TV allowing you to watch live footage.
4 Channel Selector
Select one of four channels at a time. This allows you to switch between multiple cameras.
Wireless Bird Box Camera
Does not work with:
Wi-Fi Bird Box Camera
What's in the Box?
1x Wireless Receiver
1x Mains Power Supply
1x 1m AV Cable
Frequency: ISM 2414 - 2468MHz 4 Channel
Antenna: Omni-directional antenna
Channel: 1-4 (Flip-type switch)
Intermediate Frequency: 480MHz
Frequency Stabilization: +/- 100kHz
Demodulation Mode: FM
Receiving Sensitivity: 85dBm
Video Output: 1Vp-p@75 ohm, S/N>38dB
Audio Output: 10K ohm/200mVp-p
Power:DC 12V, 500mA
Operating Temperature: -10°C to +40 °C
Operating Humidity: 85%RH
Dimension (WxLxH): 80x68x16mm
